  • CP Pistons 7Bolt (2g or EVO) 85.5mm 10.5:1 comp ratio
  • CP Pistons 7Bolt (2g or EVO) 85.5mm 10.5:1 comp ratio
  • CP Pistons 7Bolt (2g or EVO) 85.5mm 10.5:1 comp ratio

    • CP Pistons 7Bolt (2g or EVO) 85.5mm 10.5:1 comp ratio

    $200.00
    Write a Review
    Width:
    10.00 (in)
    Height:
    10.00 (in)
    Depth:
    10.00 (in)
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

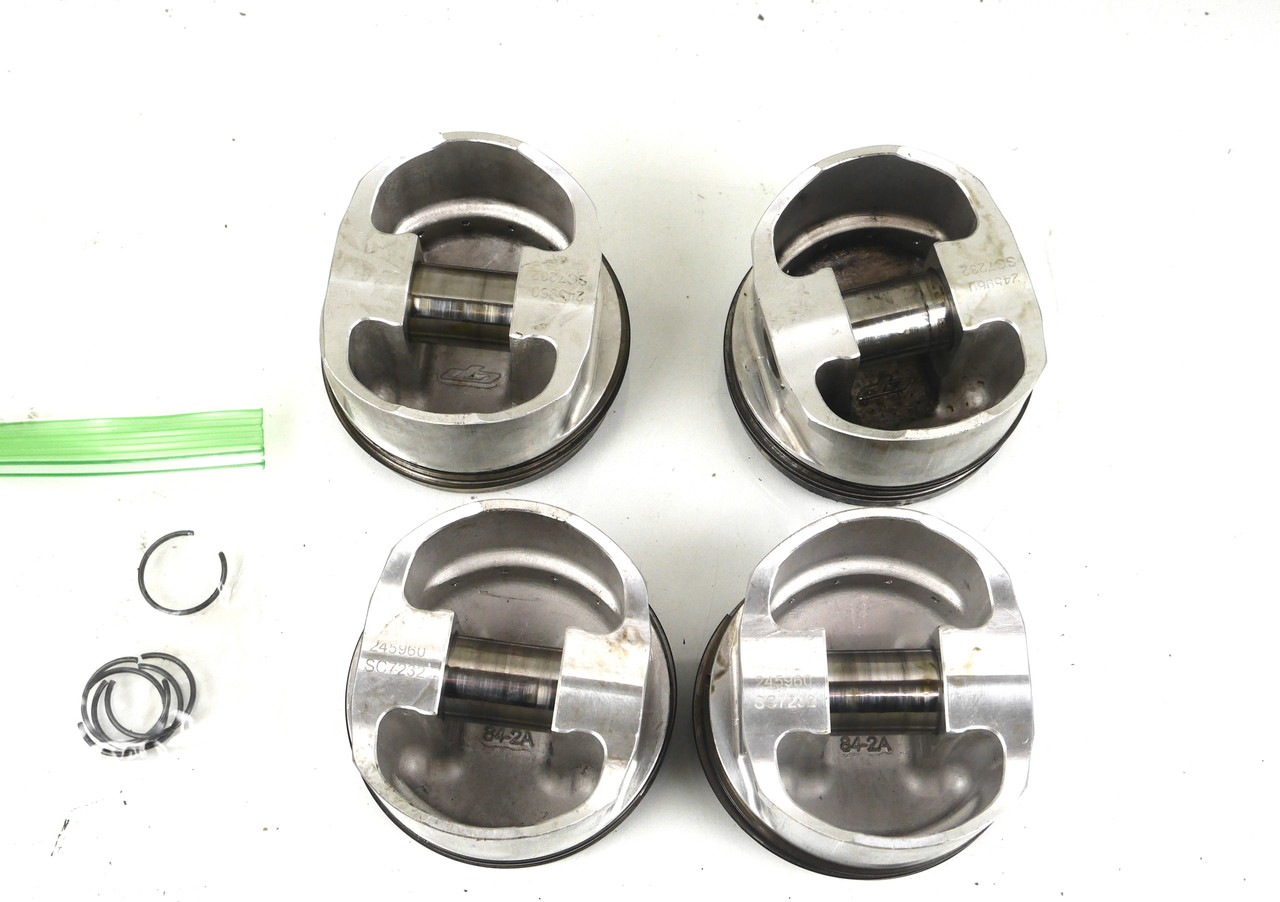

    CP Pistons include rings, pins and circlips

    Good Used Condition

    Specifications

    More Information
    Item Weight 332 g
    Shipping Weight (Dimensional) 6.000000
    Clearance Sale No
    Availability Back Ordered
    Part Type Pistons
    Make Mitsubishi
    Vehicle Model Evo 4 5 6 7 8 9
    Model Evo 4-6 CP9A, Evo 7-8 CT9A, Evo 9 CT9A
    Engine 4G63T (7-Bolt Evo 4-8), 4G63T (7-Bolt Evo 9)
    Rod Length 5.900" / 150mm
    Rod Length Oversize Standard Length
    Bore Diameter 85.5mm
    Bore Oversize 0.020" / 0.5mm
    Stroke 88mm (Standard Stroke)
    Compatible with Stock Sleeves Yes
    Requires Aftermarket Sleeves No
    Compression Ratio 10.5:1
    Pin Size 0.866" / 22mm
    Upgraded Pin (not included) 866-2250-25CP3C
    Included Ring Set CPN-3366
    Included Pin Locks 866x063 SWL
    Included Pin 866-2250-20CP1C
    Head cc 43 cc
    Dome cc -2.2 cc
    Compression Height 1.370" / 34.8mm
    Brand CP Pistons
    Skirt Type Full Round
    Piston Material 2618
    Carb Legal Unspecified
    Wrist Pin Wall Thickness 0.200"
    Wrist Pin Dimensions .866" x 2.250" x .200"
    Pin Material 5100 Chrome Moly Steel
